PCM Series Power Supplies
|
| |
| TOP-430PCM-1 |
DESCRIPTION:
- 430W ATX 12V Power Supply
- 20+4pin Main Sliding Connectors
- 120mm thermal controlled fan
- Low Ripple and Noise
- Output over voltage protection
- Reset table power shutdown
- Approved by UL, TUV, CB, CE & FCC
- Includes power cord & 5 screws
- White box package, 6 pcs per carton
 |
| |
600W |
|
|
ATX 24pin |
X1 |
|
|
ATX 4+4 pin |
X1 |
|
|
SATA |
X2 |
|
|
Molex 4 pin |
X4 |
|
|
FDD |
X2 |
|
DIMENSION (L x W x H)
Metric: 145 x 150 x 86 (mm)
US: 5.7 x 5.9 x 3.3 (inches)
Weight: approx. 4 lbs. (1.81 kg)
SPECIFICATION:
| Input Voltage |
100-120 / 200-240Vac 10/6A 60/50Hz
|
| Output Voltage |
+3.3V |
+5V |
+12V |
-12V |
-5V |
+5SB |
| Max Current Output |
22A |
35A |
28A |
0.5A |
0.8A |
2.5A |
| Max Combined Wattage |
175W |
336W |
25W |
| Total Wattage |
430W |
|
|
|
|
| TOP-500PCM |
DESCRIPTION:
- 600W ATX 12V Power Supply
- 24 pin Main Connectors
- 2 x 80mm thermal controlled fans
- Thermal Fan Control for low noise
- Heavy-Duty heat sink for optimal heat dissipation
- Glossy Titanium Case
- Includes power cord & 5 screws, 24 to 20 adapter connector, molex to pci-express cable
- White box package, 6 pcs per carton
|
| |
600W |
|
|
ATX 24pin |
X1 |
|
|
ATX 4+4 pin |
X1 |
|
|
SATA |
X4 |
|
|
Molex 4 pin |
X4 |
|
|
FDD |
X2 |
DIMENSION (L x W x H)
Metric: 145 x 150 x 86 (mm)
US: 5.7 x 5.9 x 3.3 (inches)
Weight: approx. 4 lbs. (1.81 kg)
SPECIFICATION:
| Input Voltage |
100-120 / 200-240Vac 10/6A 60/50Hz
|
| Output Voltage |
+3.3V |
+5V |
+12V |
-12V |
-5V |
+5SB |
| Max Current Output |
26A |
45A |
32A |
0.5A |
0.8A |
2.5A |
| Max Combined Wattage |
225W |
384W |
25W |
| Total Wattage |
500W |
|
|
|
|
|
| TOP-550PCM |
DESCRIPTION:
- 600W ATX 12V Power Supply
- 24 pin Main Connectors
- 2 x 80mm thermal controlled fans
- Thermal Fan Control for low noise
- Heavy-Duty heat sink for optimal heat dissipation
- Glossy Titanium Case
- Includes power cord & 5 screws, 24 to 20 adapter connector, molex to pci-express cable
- White box package, 6 pcs per carton
|
| |
600W |
|
|
ATX 24pin |
X1 |
|
|
ATX 4+4 pin |
X1 |
|
|
SATA |
X4 |
|
|
Molex 4 pin |
X4 |
|
|
FDD |
X2 |
DIMENSION (L x W x H)
Metric: 145 x 150 x 86 (mm)
US: 5.7 x 5.9 x 3.3 (inches)
Weight: approx. 4 lbs. (1.81 kg)
SPECIFICATION:
| Input Voltage |
115 / 230Vac 60/50 Hz 10/6A
|
| Output Voltage |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
-5V |
+5SB |
| Max Current Output |
26A |
54A |
20A |
20A |
1.0A |
0.8A |
2.5A |
| Max Combined Wattage |
260W |
360W |
12W |
4W |
12.5W |
530W |
28W |
| Total Wattage |
550W |
|
|
|
|
|

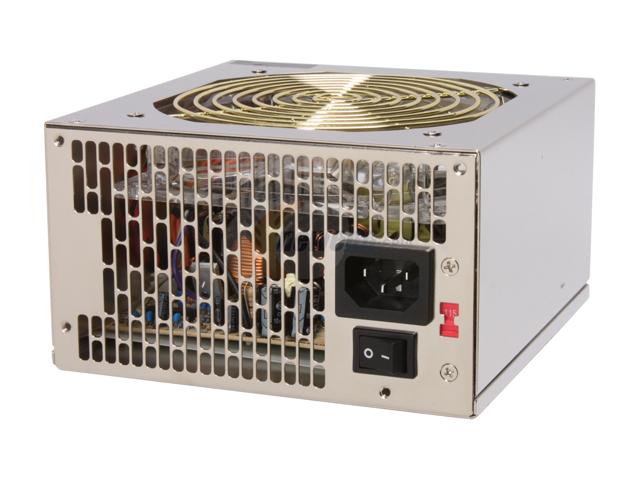

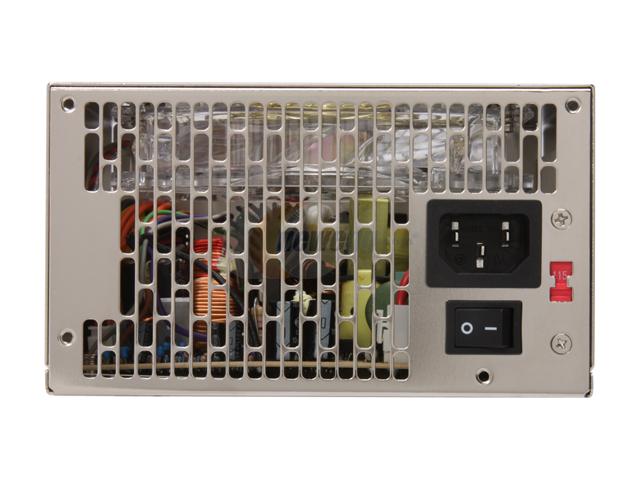

| TOP-600PCM |
DESCRIPTION:
- 600W ATX12V Power Supply, BTX, Dual Core, and PCIe board ready
- 24 pin Flex Main Connectors

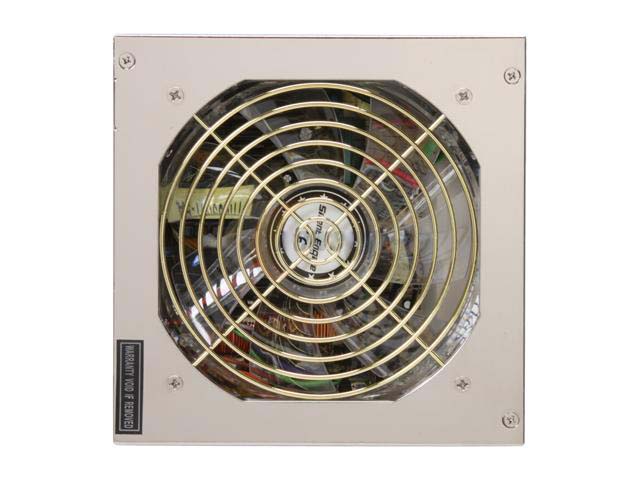

- 1 120mm thermal controlled fans
- Low Ripple and Noise
- Output over voltage protection
- Short circuit protection on all outputs
- Reset table power shutdown
- Approved by UL, TUV, CB, CE, and FCC
- 100% Hi-Pot Tested
- Includes power cord & 5 screws, 24 to 20 adapter connector, molex to pci-express cable
- White box package, 6 pcs per carton
|
| |

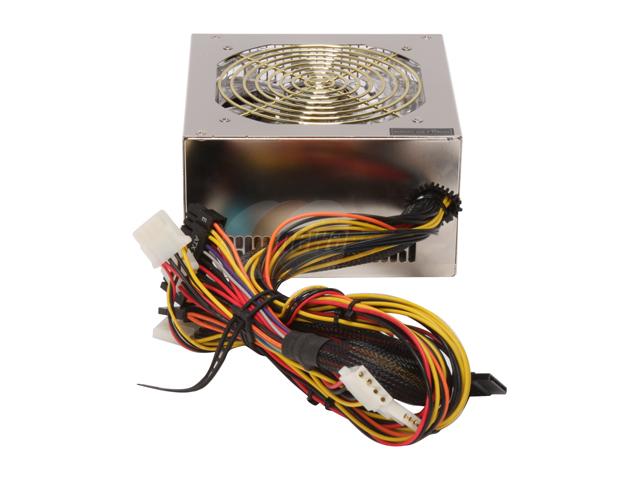

600W |
|
|
ATX 24pin |
X1 |
|
|
ATX 4+4 pin |
X1 |
|
|
ATX 4 pin |
X1 |
|
|
SATA |
X4 |
|
|
Molex 4 pin |
X4 |
|
|
FDD |
X2 |
DIMENSION (L x W x H)
Metric: 145 x 150 x 86 (mm)
US: 5.7 x 5.9 x 3.3 (inches)
Weight: approx. 4 lbs. (1.81 kg)
SPECIFICATION:
| Input Voltage |
115 / 230Vac 60/50 Hz 10/6A
|
| Output Voltage |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
-5V |
+5SB |
| Max Current Output |
28A |
57A |
20A |
20A |
1.0A |
0.8A |
2.5A |
| Max Combined Wattage |
260W |
396W |
12W |
4W |
12.5W |
580W |
28W |
| Total Wattage |
600W |
|
|
|
|
| |
|  |
