800W Power Supply


TOP-800WB










  • Features
  • Specifications
  • Cables
  • Form Factor: ATX12V 2.3
  • Maximum Wattage: 800W
  • Modular Cable Management
  • 120mm Long Life Nano Bearing Cooling Fan
  • Active PFC
  • Auto AC switch
  • Low Ripple and noise
  • Output over voltage protection
  • Short circuit protection on all outputs
  • Approved by UL, TUV, CB, CE, FCC, RoHs Compliant
  • 3 year warranty

DIMENSION (L x W x H)

Metric: 150 x 86 x 160(mm)
US: 6 x 3 3/8 x 6 1/4 (inches)
Weight: 7 lbs ( 3.175kg)

SPECIFICATION:

Input Voltage
115-230V 60/50hz 12-6A
Output Voltage
+3.3V
+5V
+12V1
+12v2
-12V
+5SB
Max Current Output
26A
26A
32A
32A
0.8A
3.0A
Total Wattage
800W

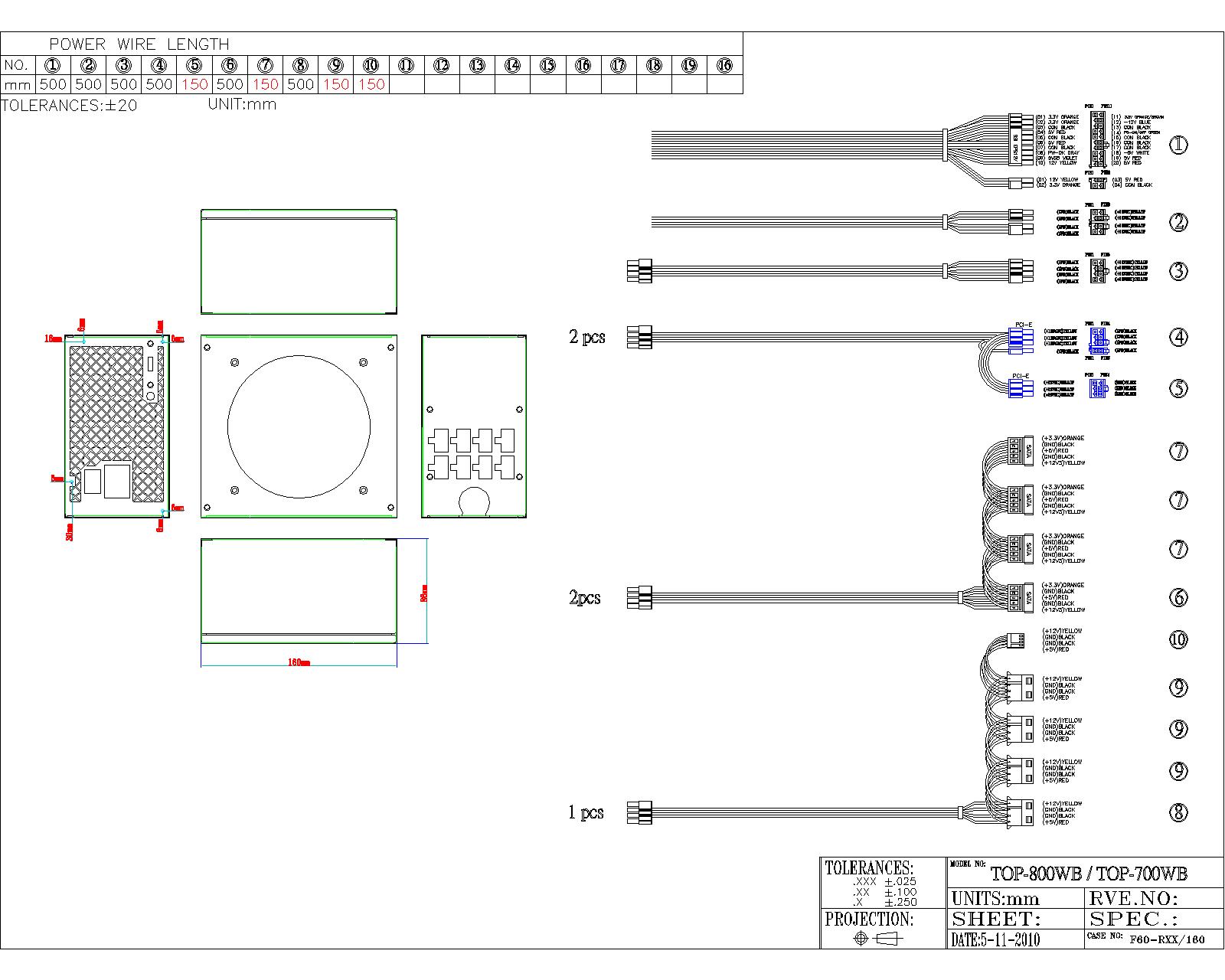

WIRE DIAGRAM:

- Click Here to Download FIle -

Click bottom picture for enlarged view.


ATX 24pin & 20 pin
X1
ATX 4+4 pin
X2
PCI-Express 6+2 pin
X2
PCI-Express 6 pin
X2
SATA
X8
Molex 4 pin
X4
FDD
X1


CABLE LENGTH:

Number of Cables
Cable
Length (cm)
1
ATX 20+4
50
1
ATX12V/EPS12V 4+4
50
Modular Cables
1
EPS 12V 8
55
2
PCIe
55 , 65
2
SATA
50, 60, 80, 95
4
Molex + FDD
50, 65, 80, 95, 110
