Topower SilentEZ power supply series is the combination of silence, cable management, and high efficiency. It is designed to provide modern power technology with greener, quieter, and more efficient computing experience to all users.
Intel ATX 12V 2.3 and EPS 2.91 compliant.
High efficiency 80% at typical work load
Modular cable management
120mm thermally controlled cooling fan
Airflow Redirect Technology ensures 19dBA at 80% load
Turbo fan button to control fan speed
Supports both Dual and Quad core CPU
Support PCI-Express graphics card
Multi 12V rails design to provide superior performance
Safety agency approval / EMI approvals: CE, UL, CUL certified
2 Year Warranty from Topower

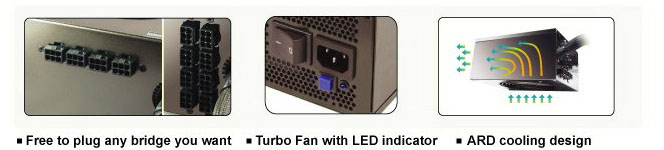

Turbo Fan Switch

  • Press the button and enjoy cooling fan running at full speed to cooldown the power supply and exhaust heat from PC chassis, top choice for gaming player.
  • extends the lifetime of every components in power supply.

ARD cooling design (Airflow Re-Direction)

  • Specially designed and tested for 12cm fan cooling.
  • Airflow to be Re-Directed to ensure heat dissipation
  • Avoids "air curtain" effect

Embedded Fan Control Circuit

  • Support power supply fan and case fans with total up to 1 ampere allowance.

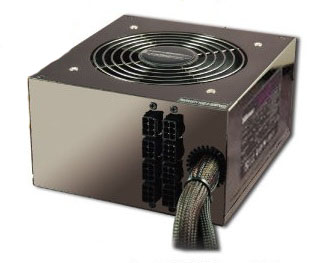

Modular Cables

  • Flexible to plug in any bridge
  • Eliminate clutter and improve airflow inside the case
  • Dual 12V rails design

Efficiency Chart:

Schematic Drawing: Download



400W
500W
ATX 24pin & 20 pin
X1
X1
atx_4pin
ATX 4 pin
X1
X1
pcie_6pin
PCI-Express 6 pin
X1
X1
SATA
X2
X2
Molex 4 pin
X6
X6
FDD
X1
X1

115-230V 8-4A / 50-60Hz

SilentEZ 400

Voltage

3.3V

5V

12V1

12V2

-12V

5Vsb

Max spilt current

24A

20A

20A

20A

0.3A

2.5A

Max combine Power

150W
312W
15W
Total Power
400W

115-230V 8-4A / 50-60Hz

SilentEZ 500

Voltage

3.3V

5V

12V1

12V2

-12V

5Vsb

Max spilt current

24A

20A

20A

20A

0.3A

2.5A

Max combine Power

150W
360W
20W
Total Power
500W
