DESCRIPTION:
Topower's 5 open bay 3U chassis is fit for most rackmount server case needs. The chassis is designed to withstand the tough environment and with high capacity in the market. Special features of front USB access, front cooling fan, and optional fan senor board to enhance functionality and usability for critical misions and applications.
DIMENSION (L x W x H)
Metric: 550 x 483 x 133 (mm)
US: 21.7 x 19 x 3.5 (inches)
Weight: 34.1 lbs
SPECIFICATION:
Power Supply |
PSII 250W - 600W
Redundancy 350W-620W |
System Board |
12" X 13" PC/ATX/AT |
USB |
2 ports |
Capacity Bays |
5 x 5.25"
1 x slim CD/DVD bay
7 x Expansion Slots |
Indicators |
LEDSs: Power ON / OFF, HDD, LAN
Switches: Reset, Power, Fan Alarm |
Keyboard Connector |
Front / Rear panel |
Air Filter |
Washable |
Fan Control Card |
4 fans (optional) |
Fans |
1 x 8cm Ball Bearing Fans
1 x 6cm Ball Bearing Fans
1 x 6cm Ball Bearing Fans (optional)
|

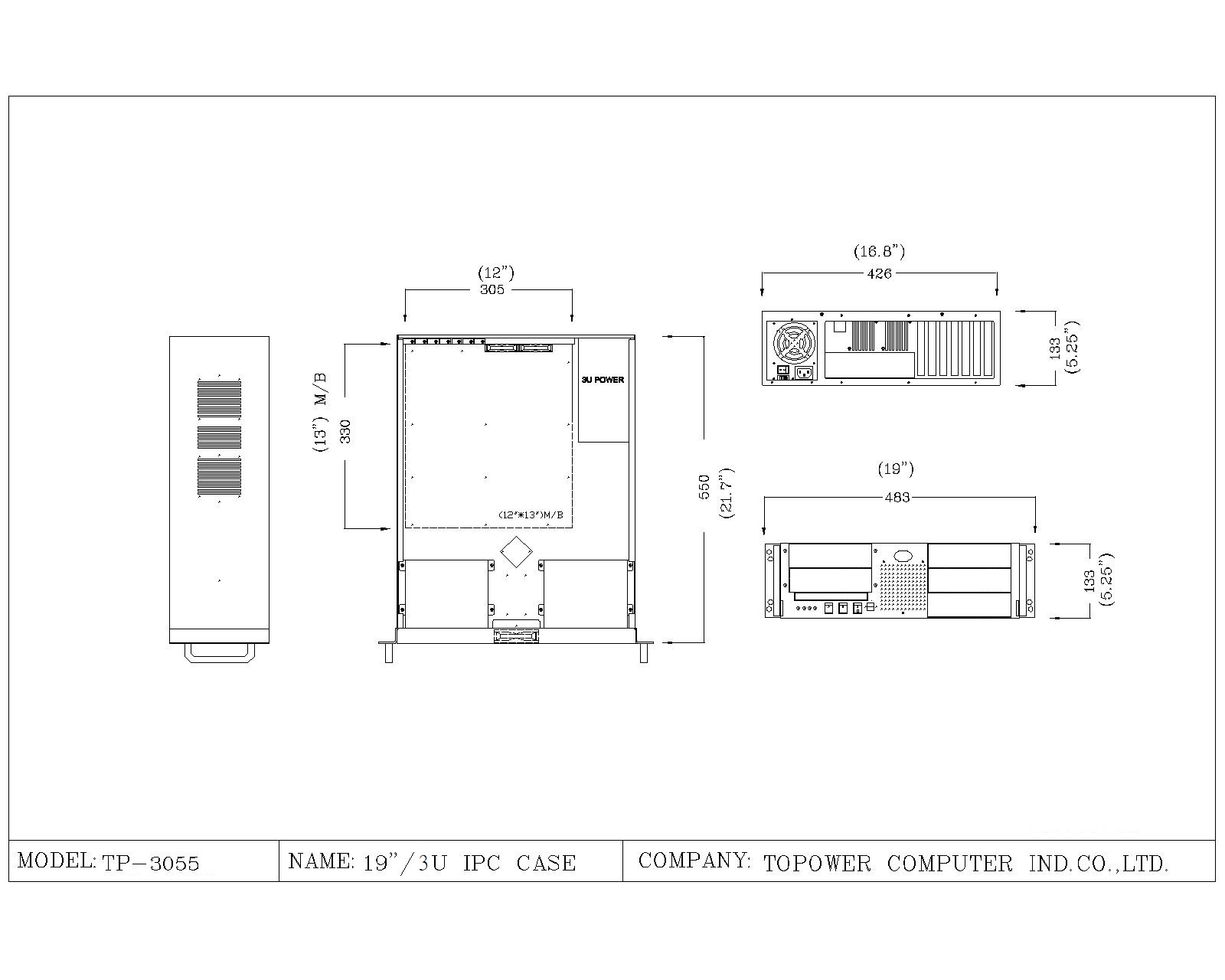

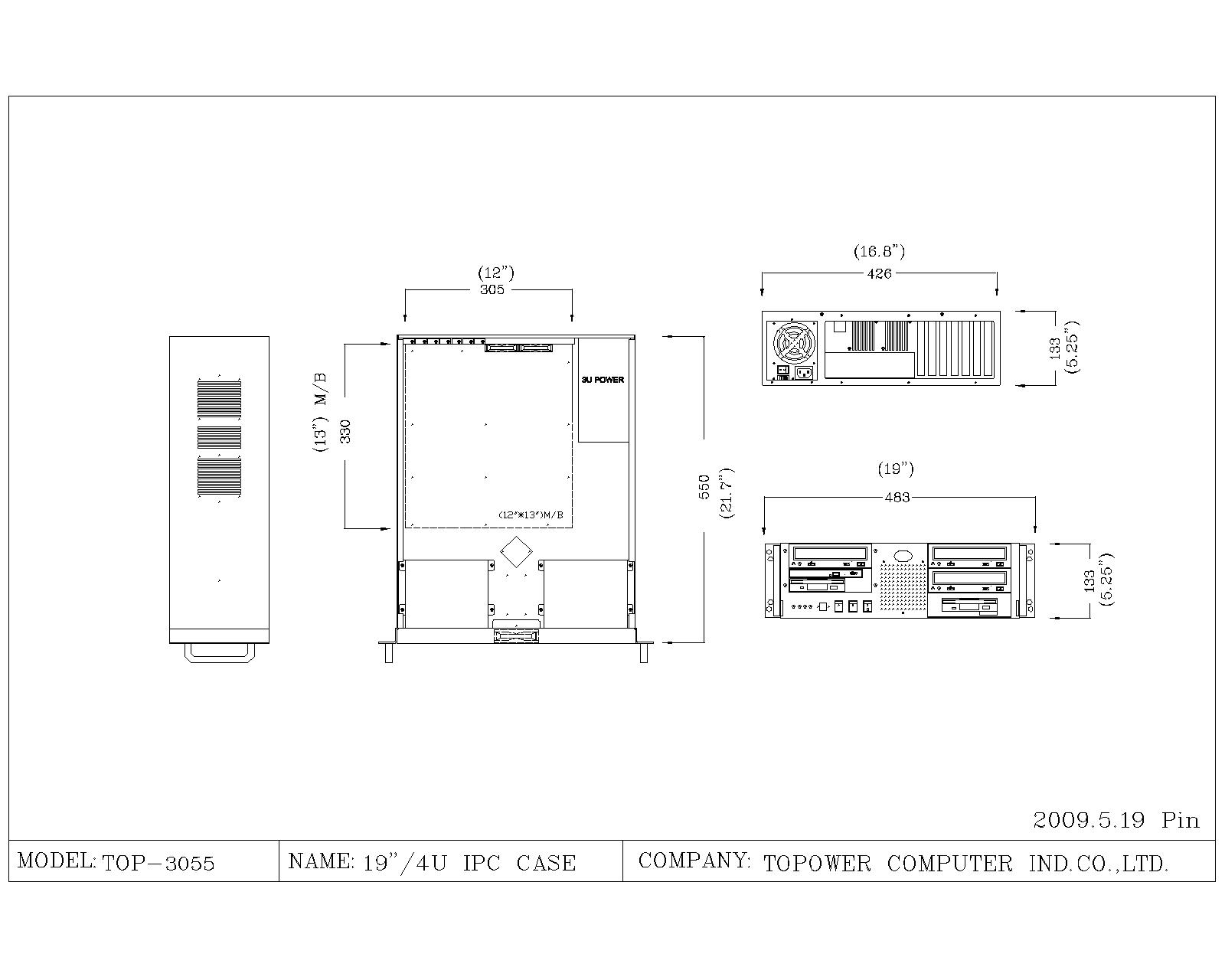

Schematic Drawing:
click on drawing for full view
|
|
Power supply
