  TP/4045B-216C


(Click on image to enlarge)
ffiron







DESCRIPTION:

  • 4U Chassis will fit most rackmount server case needs
  • 16 Hot Swappable SATA & SAS Modules
  • SAS Cables not included with modules
  • SATA Cables included
  • Case is designed to tough environment and high capacity in the market
  • Features frontal USB access, fan mount, and optional fan sensor board.
  • System board: 12" x 10.5" PC / AT / ATX
  • Air filter provided is washable

DIMENSION (L x W x H)

Metric: 450 mm X 483 mm X 178mm
US: 17.7"(L) X 19"(W) X 7"(H)
Weight: 29 lbs

SPECIFICATION:

Power Supply
AT, ATX, Redundant
Capacity Bays

4 x 5.25" external & 16 x 2.5" Hot Swappable HD Bays
Optional 2 x 3.50" HDD Bays

Indicators

LEDSs: Power ON / OFF, HDD

Switches
Reset, Power, Fan Alarm
USB
2 Front USB Ports
Fan Control Card
4 Fans (optional)
System Board
12" x 10.5"
Fans
2 x 8cm Fans
3 x 8cm Fans (optional)

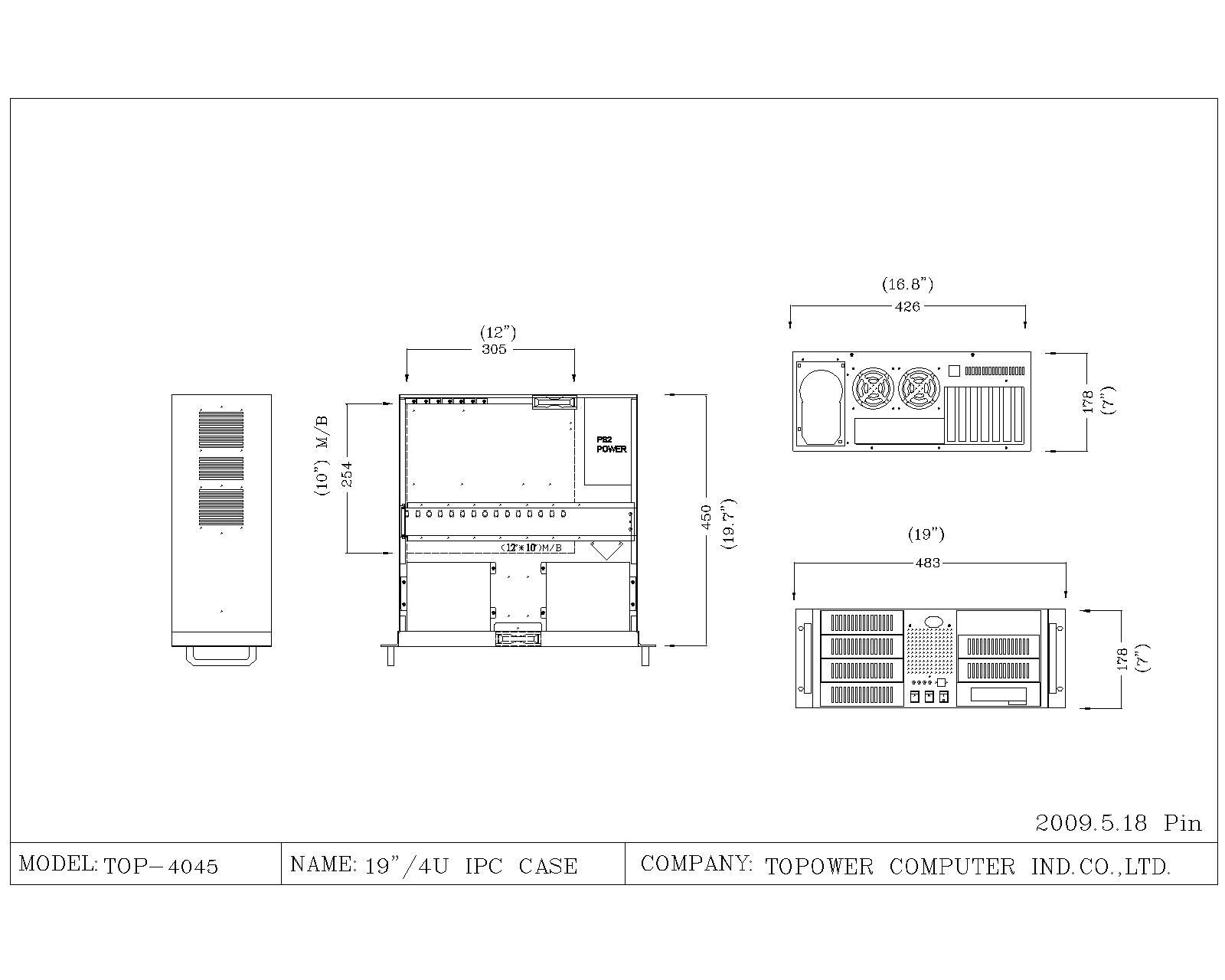

Schematic Drawing:
Click drawing for full view
click this for the drawing file (*.dwg)
