DESCRIPTION:
- 4U Chassis will fit most rackmount server case needs
- Case is designed to tough environment and high capacity in the market
- Features frontal USB access, fan mount, and optional fan sensor board.
- System board: 12" x 13" PC / AT / ATX
- Air filter provided is washable
DIMENSION (L x W x H)
Metric: 550 x 483 x 178 (mm)
US: 21.7 x 19 x 7 (inches)
Weight: 36.3 lbs
SPECIFICATION:
Power Supply |
AT, ATX, Redundant |
Capacity Bays |
8 x 5.25" external or 7 x 5.25" external / 3.50" internal

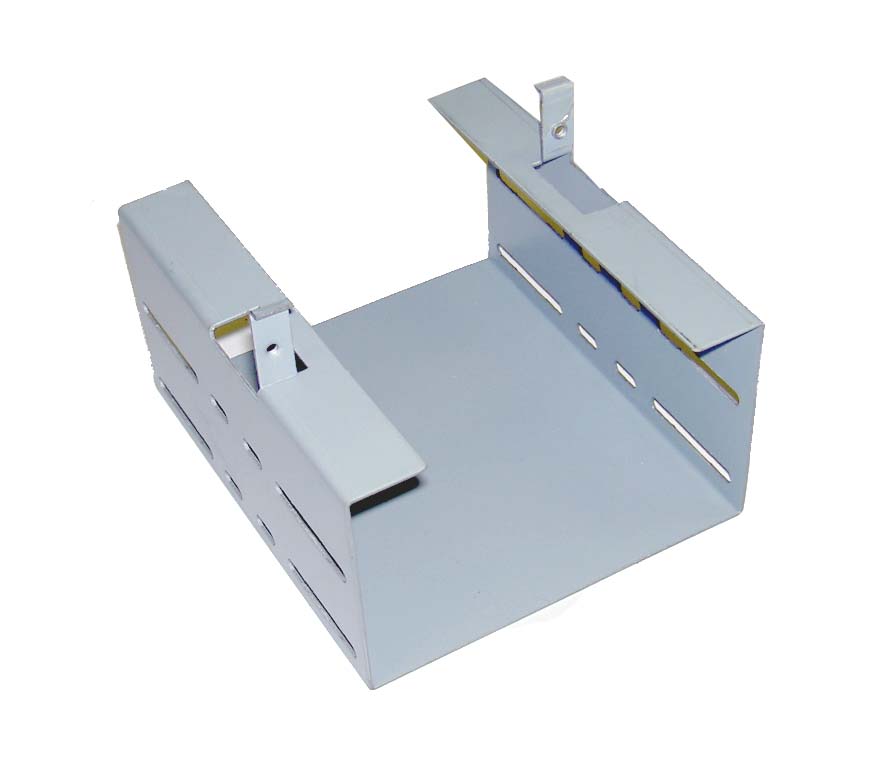

Optional 2 x 3.50" HDD case |
Indicators |
LEDSs: Power ON / OFF, HDD |
Switches |
Reset, Power, Fan Alarm |
USB |
2 Front USB Ports |
Fan Control Card |
4 Fans (optional) |
System Board |
12" x 13" PC/ATX/AT |
Fans |
2 x 8cm Fans
3 x 8cm Fans (optional)
|

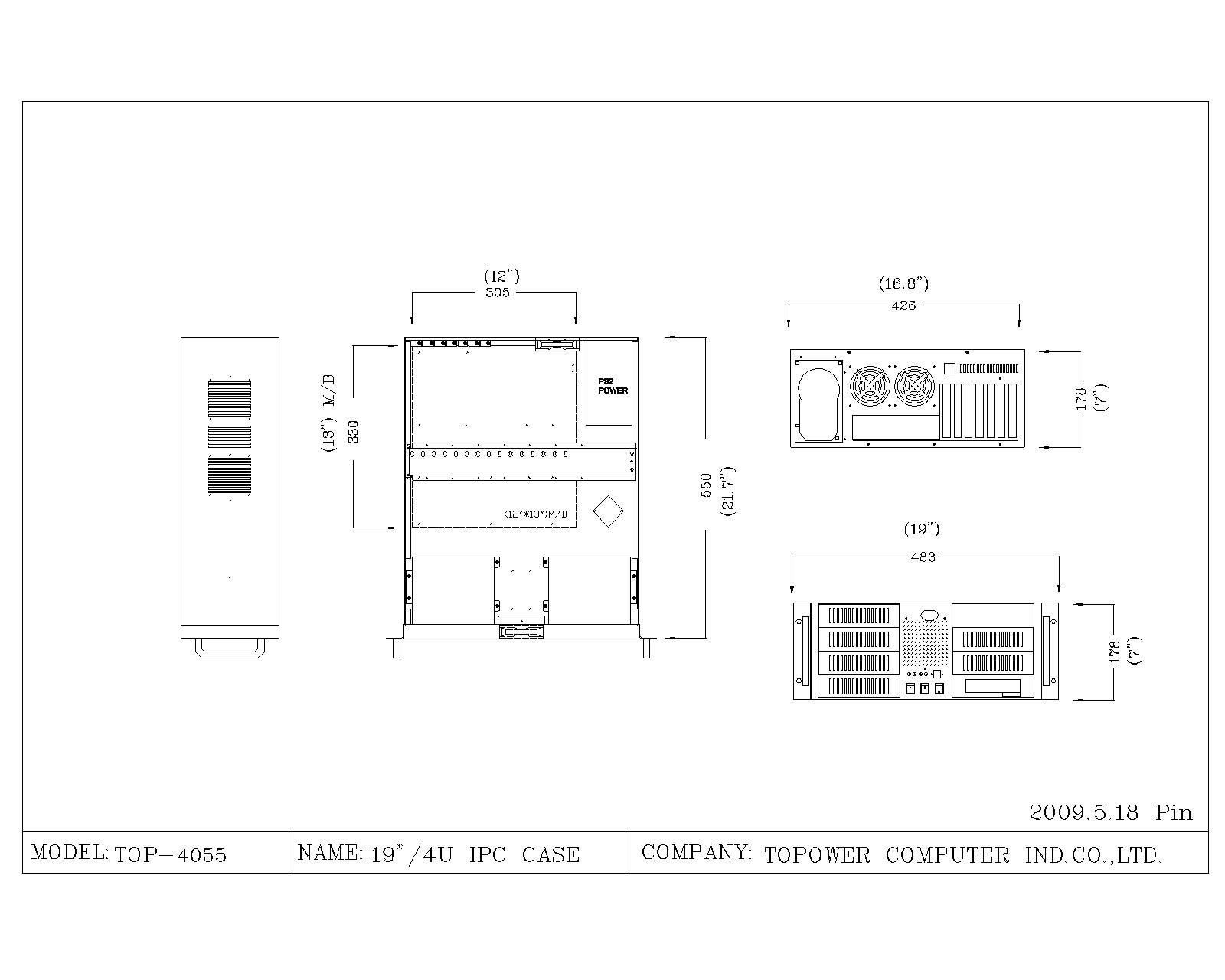

Schematic Drawing:
Click drawing for full view
click this for the drawing file (*.dwg)
|
|
Power supply
